Diesel Welding Machine 400A/500A/600A
Industrial Field Powerhouse: The Ador Diesel Welding Machine 400A/500A/600A Series

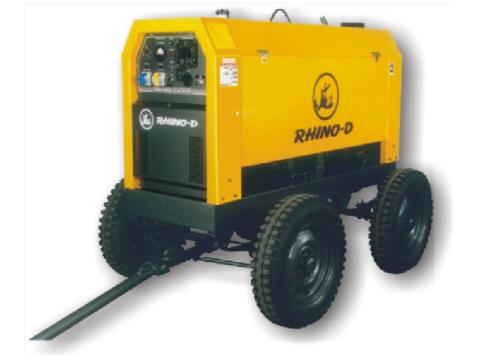

The Ador Rhino D series, specifically the heavy-duty Rhino D 500 K4 model, is an industry-standard, standalone mobile power solution engineered to handle the toughest field applications. Developed by Ador Welding to serve sectors operating far from the primary electrical grid—such as cross-country pipeline construction, oilfield installations, offshore maritime repairs, and remote civil engineering projects—this system functions as a high-output DC welding power source and a high-capacity auxiliary generator. By eliminating dependency on external electrical connections or separate towable generator sets, the Rhino D streamlines mobile fleet logisitics and delivers dependable performance under continuous, high-amperage duty cycles.
Advanced Brushless Generation and Electrical Architecture for Diesel Welding Machine 400A/500A/600A
At the heart of the Ador Rhino D 500 K4 lies an advanced, maintenance-free brushless welding alternator configuration. Unlike legacy brush-type generators that require regular maintenance down-time to replace worn-out carbon contacts, the brushless design minimizes frictional wear, eliminates electrical arcing across internal components, and ensures consistent current output over years of field operation.
The electrical architecture provides a wide current adjustment range spanning from 30 Amperes up to a peak output of 500 Amperes DC. Operating with an exceptional maximum Open Circuit Voltage (OCV) of 92 VDC, the generator enables instantaneous arc ignition and easy re-striking. This high open-circuit ceiling is crucial when operating with difficult heavy basic low-hydrogen rods or specialized cellulosic electrodes (such as AWS E6010, E7010G, and E8010G types). The integrated electronic control network keeps the welding current completely stable, unaffected by fluctuations in engine operating speed or the attachment of long welding leads up to 50 meters.
Heavy-Duty Kirloskar Engine Integration of Diesel Welding Machine 400A/500A/600A
To ensure reliable performance in harsh desert environments and high ambient temperatures, the Ador Rhino D is powered by a Kirloskar HA-494 four-cylinder, naturally aspirated, air-cooled diesel engine. Rated at 52 Brake Horsepower (BHP) at a regulated speed of 1800 RPM, this industrial power plant is engineered for maximum fuel economy and durability.
- Fuel Efficiency Optimization: The engine consumes 5.5 liters per hour under a full 100% welding duty cycle, allowing teams to complete extended work shifts without frequent refueling stops.
- Integrated Intake Protection: Equipped with a heavy-duty, dry-type multi-stage air cleaner and high-efficiency primary fuel filters, the engine is completely shielded from airborne dust, sand silt, and fuel contaminants.
- Electronic Safeguards: Operational monitoring is managed by a Digital Engine Safety Unit (ESU). This safety module continuously tracks critical values, triggering an automated fuel cut-off solenoid to shut down the engine immediately if it detects low lubricant oil pressure, high cylinder head temperatures, or a cooling fan belt failure.
High-Capacity Dual-Mode Auxiliary Power Output of Diesel Welding Machine 400A/500A/600A
A standout feature of the Ador Rhino D 500 platform is its dual-use electrical capability. The unit features an independent auxiliary generator winding that functions as a high-capacity power station to run secondary field tools, heavy grinding equipment, site lighting rigs, and induction heating blankets.
- Simultaneous Weld and Power Mode: While welding operations are actively running at maximum capacity, the auxiliary panel continues to output a stable 3-phase, 415V supply up to 18 KVA, or a single-phase supply up to 6 KVA. This allows helper teams to safely run heavy grinding discs or prep tools without causing current drops or arc instability for the primary welder.
- Pure Auxiliary Generator Mode: When the welding circuit is disengaged, the auxiliary power panel scales up its delivery, providing a total of 22 KVA across its 3-phase sockets (11 KVA per socket) and a full 6 KVA on single-phase outlets (divided into 220V and 110V connections). Every socket is protected by individual, fast-acting Molded Case Circuit Breakers (MCCBs) to prevent overload damage.
📊 Comprehensive Technical Specifications Matrix of Diesel Welding Machine 400A/500A/600A
| Engineering Parameter Component | Technical Performance Specification Value |
| Welding Range Adjustment | 30 Amperes to 500 Amperes DC |
| Max Current at 60% Duty Cycle | 500 Amps @ 40V |
| Max Current at 100% Duty Cycle | 400 Amps @ 36V |
| Maximum Open Circuit Voltage (OCV) | 92 VDC |
| Engine Manufacturer & Model | Kirloskar HA-494 (4 Cylinders, Naturally Aspirated) |
| Engine Output Rating & Speed | 52 BHP @ 1800 RPM |
| Cooling Methodology Type | Forced Air Cooled Architecture |
| Fuel Consumption Profile | 5.5 Liters / Hour at 100% Continuous Load |
| Onboard Fuel Storage Volume | 70 Liters Total Capacity |
| Auxiliary Power (Weld + Aux Mode) | 3-Phase: 18 KVA / 1-Phase: 6 KVA |
| Auxiliary Power (Aux Only Mode) | 3-Phase: 22 KVA Total / 1-Phase: 6 KVA Total |
| Enclosure Protection & Insulation | IP23 Enclosure / Class H Insulation Winding |
| Regulatory Compliance Standards | Generally Conforms to IS-2635 & ISO-3046 Codes |
Target Engineering Applications of Diesel Welding Machine 400A/500A/600A in Kuwait
Given its high output capacity, rugged build, and independent generation system, the Ador Rhino D series is optimized for demanding industrial sectors throughout the region:
- Cross-Country Pipeline Projects: Enables field teams to maintain continuous downhill welding on high-tensile oil, gas, and product transmission pipelines using cellulosic consumables.
- Oilfield Service Operations: Built to endure high ambient heat and sand exposure during assembly, wellhead maintenance, and structural repairs across remote gathering centers.
- Structural Mechanical Erection: Serves as a versatile dual-purpose workhorse on major infrastructure projects, providing heavy-duty structural stick welding capabilities while simultaneously running large industrial tools.
Maintenance, Storage, and Onsite Field Management of Diesel Welding Machine 400A/500A/600A
To maximize service life and preserve high-voltage insulation integrity, position the machine on a stable, level surface away from standing water or direct sand drifting paths. Inspect engine oil levels and drain accumulated moisture from the fuel-water separator before every daily start cycle. Clean out accumulated dust from the generator windings and radiator fins at regular service intervals using clean, low-pressure compressed air.
Ensure all secondary output cables are securely locked into the quick-connect camlocks to prevent impedance overheating. The machine is available in heavy skid configurations, as well as factory-engineered two-wheel or four-wheel towable undercarriages, ensuring safe transport across demanding terrain.
For more information Contact us.
Diesel Welding Machine | 400A/500A/600A | Dependable Welding Solutions
Diesel Welding Machine 400A/500A/600A is a premier, heavy-duty diesel engine driven welding generator engineered for demanding remote site fabrications. Powered by a highly reliable four-cylinder Kirloskar HA-494 air-cooled diesel engine, this brushless machine provides a potent welding current range of 30A to 500A. It features a maximum open circuit voltage of 92 VDC, delivering stable, continuous arc characteristics optimized for cellulosic electrodes. Simultaneously, it acts as a high-capacity mobile generator, outputting up to 22 KVA of auxiliary power for onsite tools. Distributed ex-stock in Kuwait by Agrim Projects Services, it is the definitive choice for cross-country pipelines and oilfield maintenance projects. For more information Contact us.
Product SKU: EA
Product Brand: ADOR
Product Currency: KWD
Product Price: 2000-3000
Product In-Stock: InStock
